Containers on AWS : Amazon ECR and AWS App Runner
Hello before, I am Budi. I write about AWS App Runner with Amazon ECR services. If you want read about AWS App Runner with GitHub, you can see to the page. Amazon ECR are is services that fully managed container registry can store, share and deploy your containers.
Let’s go ! Before starting, (optional) you can use AWS Cloud9 by Amazon EC2 for IDE.
Go to AWS Cloud9 and click Create environment.
Then, fill the name and description, click Next step.
Choose environment type and also instance type for IDE.

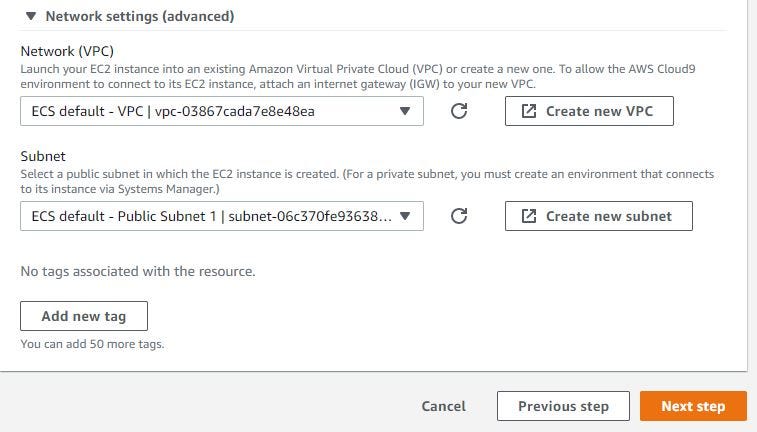

Choose platform, cost-saving setting. Create IAM role for AWS Cloud9 and click Next step.
Then, you can check again before click create environment for IDE. If already, can click Create environment.
Then, go to Amazon ECR service. Click private for private repository and click Create repository.
Fill the repository name and click Create repository.
Tadaaaaa, now my Amazon ECR have one private repository and now can store Docker image. Go to AWS Cloud9 and environment are ready for deploy image to Amazon ECR.
Before push commands for the private repo, git clone from GitHub for can store/deploy image.
git clone https://github.com/budionosan/googlecloudserverlesshackathon.gitcd googlecloudserverlesshackathonaws ecr get-login-password --region us-east-1 | docker login --username AWS --password-stdin 528330824487.dkr.ecr.us-east-1.amazonaws.comdocker build -t firstecr .docker tag firstecr:latest 528330824487.dkr.ecr.us-east-1.amazonaws.com/firstecr:latestdocker push 528330824487.dkr.ecr.us-east-1.amazonaws.com/firstecr:latest
After the process is finished, the image are successful push and can using for Amazon ECS (next tutorial), Amazon EKS (next tutorial) and AWS App Runner (this tutorial).

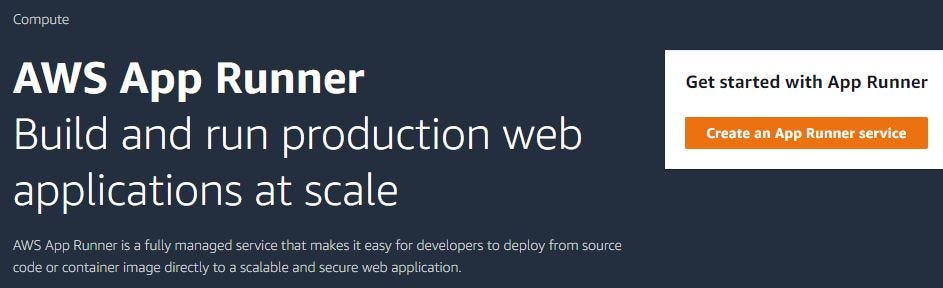

Next, go to AWS App Runner service and click create service.

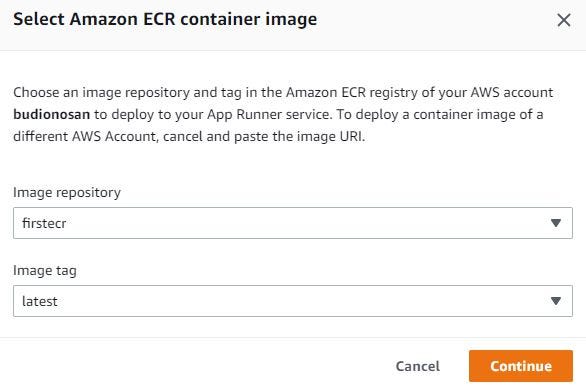

Choose container registry, choose Amazon ECR (not Amazon ECR Public) and browse container image URL from Amazon ECR.
You can choose deployment settings. Manual using App Runner console or CLI. Automatic means when Amazon ECR have new version can automatic deploy to AWS App Runner. Create also IAM role for App Runner and click Next.
Fill the service name, virtual CPU and memory, port (8080)

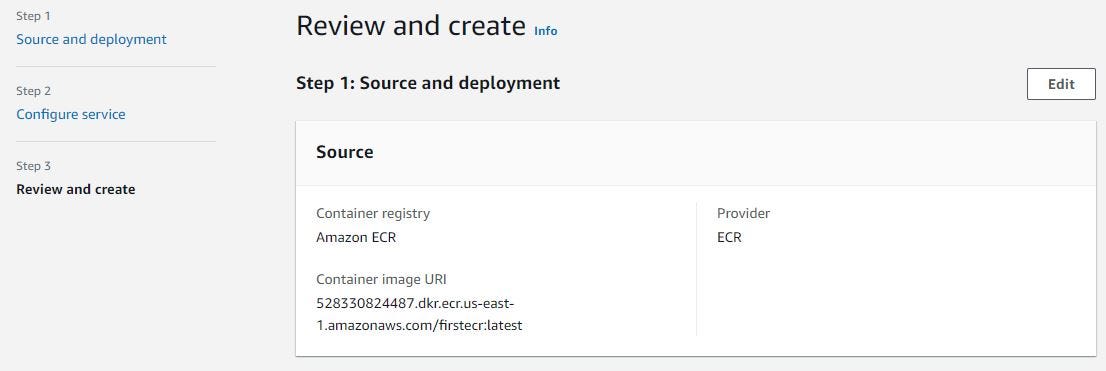

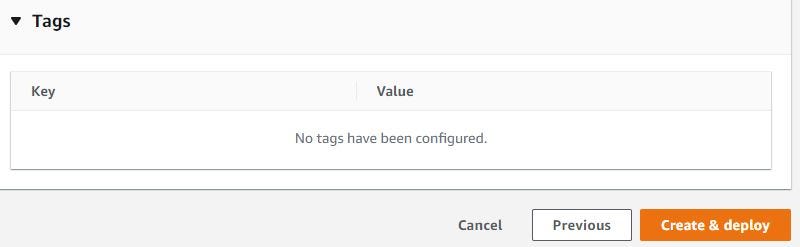

You can review scrolling to bottom and click “Create & deploy” if matching.

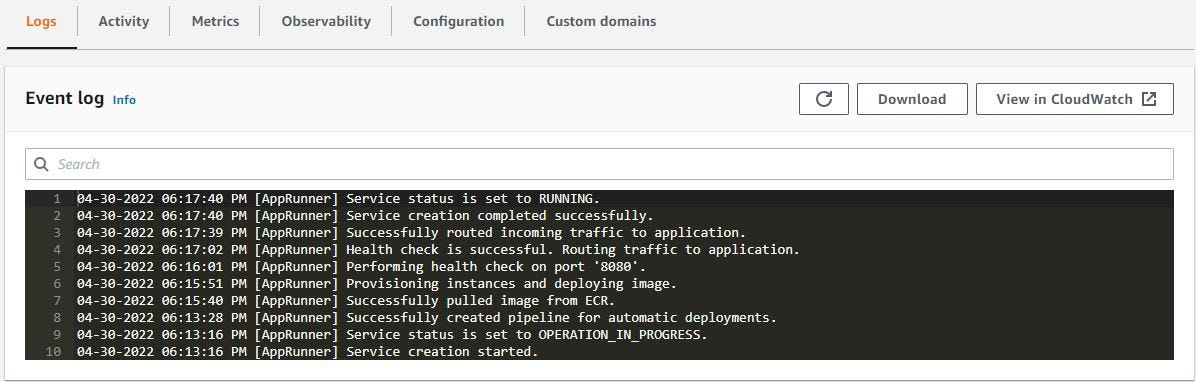

You can wait loading the progress in AWS App Runner. This service have default domain and source from Amazon ECR. The domain can changed.
After the progress are is finished, your App Runner service are ready. Click default domain.
Create web application with App Runner are easy. Thank you very much :)
